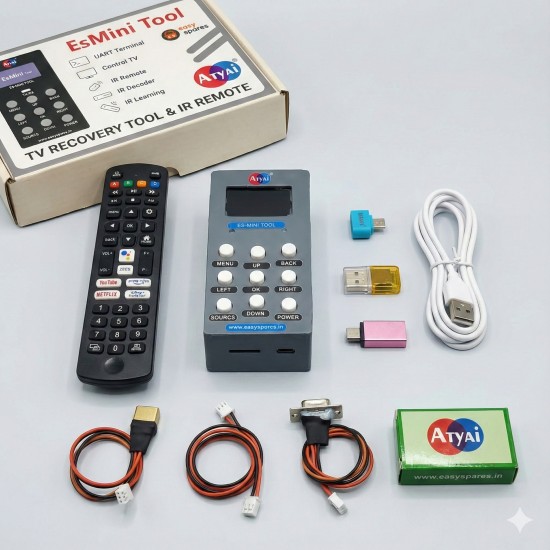

EsMini Tool – Handheld IR, UART & EEPROM Analyzer
The EsMini Tool is the ultimate compact, portable diagnostic companion for TV technicians, electronics hobbyists, and developers. While retaining its core strengths in handheld IR remote signal analysis, learning, and high-speed UART serial communication, the latest firmware transforms it into a versatile field programmer.
Featuring a built-in rechargeable battery, it is ideal for on-the-go diagnostics. Beyond creating universal remotes and interfacing with microcontrollers, the tool now offers direct I2C capability, allowing users to read, write, and verify standard EEPROM chips without a PC. TV repair capabilities are further enhanced with secure TCON voltage backups and sophisticated hardware self-diagnostics.
Reliable, feature-rich, and easy to use. Visit: esmini.easyspares.in
Updated Specifications & Features
Primary Functions:
IR Analysis: Universal remote emulation, learning (capture & replay), and protocol decoding (NEC, Samsung, Sony, Raw timing).
UART Terminal: High-speed serial communication (up to 1Mbps) with preset SoC recovery commands and custom script capability.
[NEW] EEPROM Programmer: Integrated I2C support to read, write, and verify 24xx series EEPROMs (e.g., 24C04, 24C32, up to 24C512) directly to SD card
.binfiles. Includes dedicated Sony ID mode.[NEW] TCON PMIC Tool: Adjust panel voltages on supported PMIC chips and perform secure, encrypted voltage dumps to SD card for safe restoration.
Key Features:
Power: Built-in rechargeable Li-Po battery via USB-C.
Storage: Micro SD card slot for storing remote profiles, UART scripts, and EEPROM/TCON dump files.
[NEW] Diagnostics: Integrated UART hardware loopback self-test to verify TX/RX line integrity in the field.
Interface: Crisp OLED display with improved text entry for file naming.
Use Cases: Complete TV mainboard & TCON repair, remote diagnostics, EEPROM data recovery/cloning, home automation IR learning.
